Pulleys
SPZ–SPC · 60–1,000 mm · 1–10 grooves
Taper-bore pulleys, held in Cairo. Quotation on the same working day.
Made by
60–1,000mm pitch diameters, SPZ–SPC
1–10grooves from stock, more on request
V-beltsNarrow wedge, and classical of the same width
Pulleys

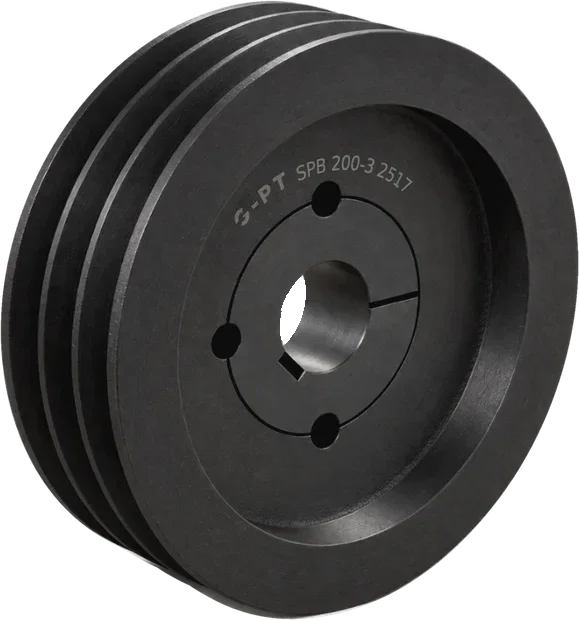

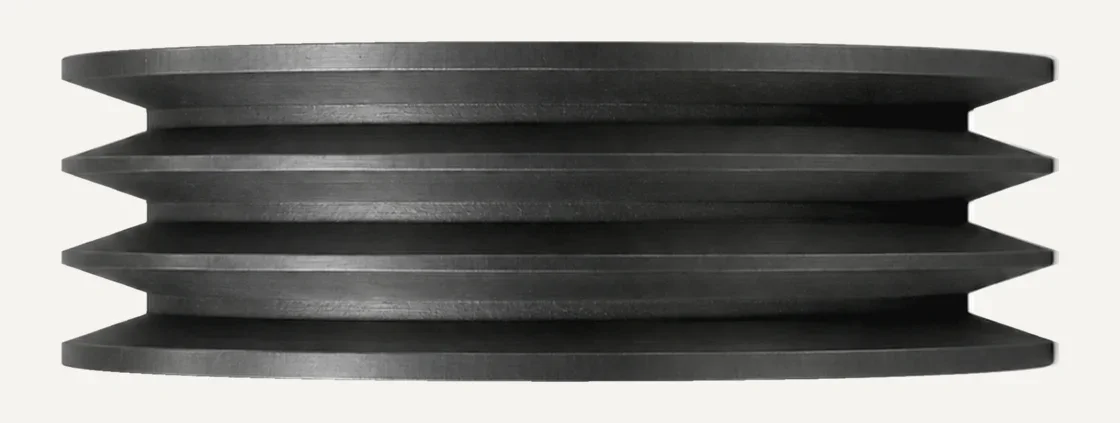

Taper-bore pulleys.
Hover to see insideTap to see insideTaper-bore pulleys SPZ–SPC

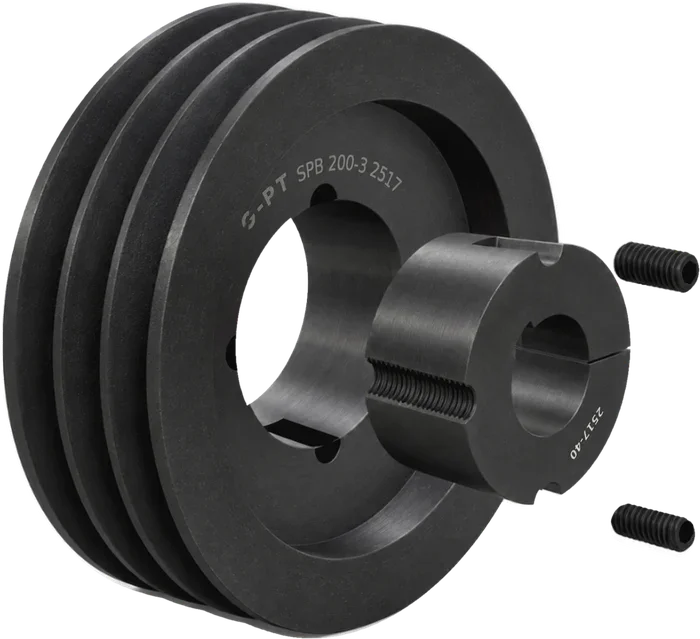

Fitted to the shaft with a taper bush. Takes narrow wedge belts, and classical belts of the same width.
Pitch diameters60–1,000 mm
Grooves1–10
Size guide
Pulley sizes we supply.
Tell us the section, diameter, grooves and bore. We quote the same working day.
| Section | Pitch diameters | Grooves | Bore |
|---|---|---|---|
| SPZ | 60–400 mm | 1–4 | Taper bush |
| SPA | 63–400 mm | 1–6 | Taper bush |
| SPB | 100–1,000 mm | 1–10 | Taper bush |
| SPC | 150–1,000 mm | 3–10 | Taper bush |
Taper-bore ranges from GICO’s stock list. Taper bushes have their own page.
Not sure which? Send a photo, or see how to identify it.
Pulleys
Check the pulley when you change the belt.
A worn groove lets the belt sink and slip, and a new belt wears quickly in it. If the groove looks worn, send us a photo. We quote the pulley and taper bush together.
Goes with
Quote them together.
Send all the parts in one WhatsApp message. We reply with one quotation.
Send the pulley size, a photo or the old pulley.
We send a quotation the same working day.
Request a quotation
Drawings or a parts list? Email info@gicoeg.com
