V-belts

A–D · SPZ–SPC · 8V · XPA–XPC

Classical, narrow-wedge and cogged V-belts, held in Cairo. Quotation on the same working day.

Request a quotation See the sizes

Authorised distributor

AuthorisedMovendis distributor

ISO 1813Wrapped V-belts: antistatic, tested to ISO 1813

M=SConstant length: same code, one set (Movendis)

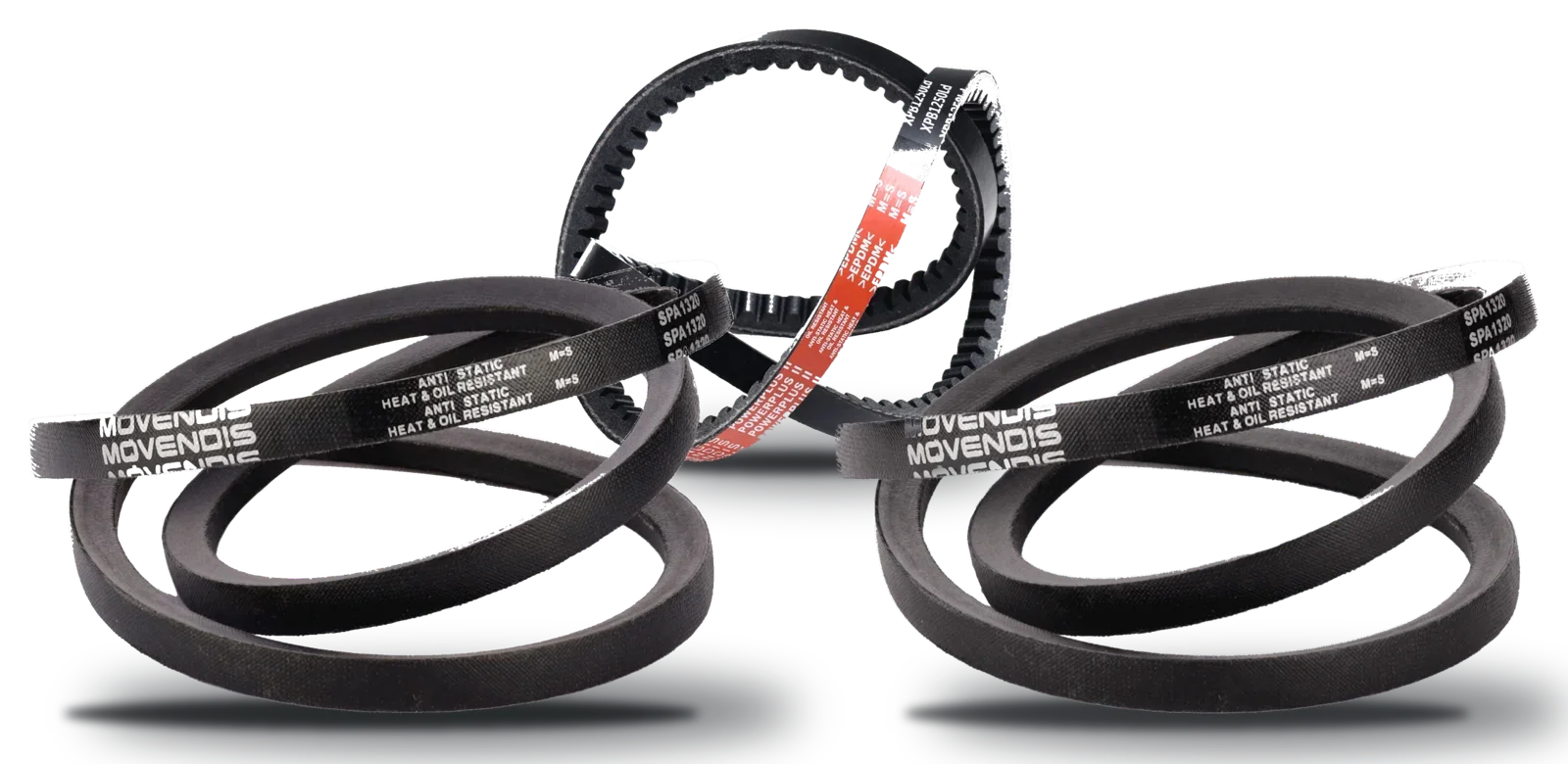

V-belts

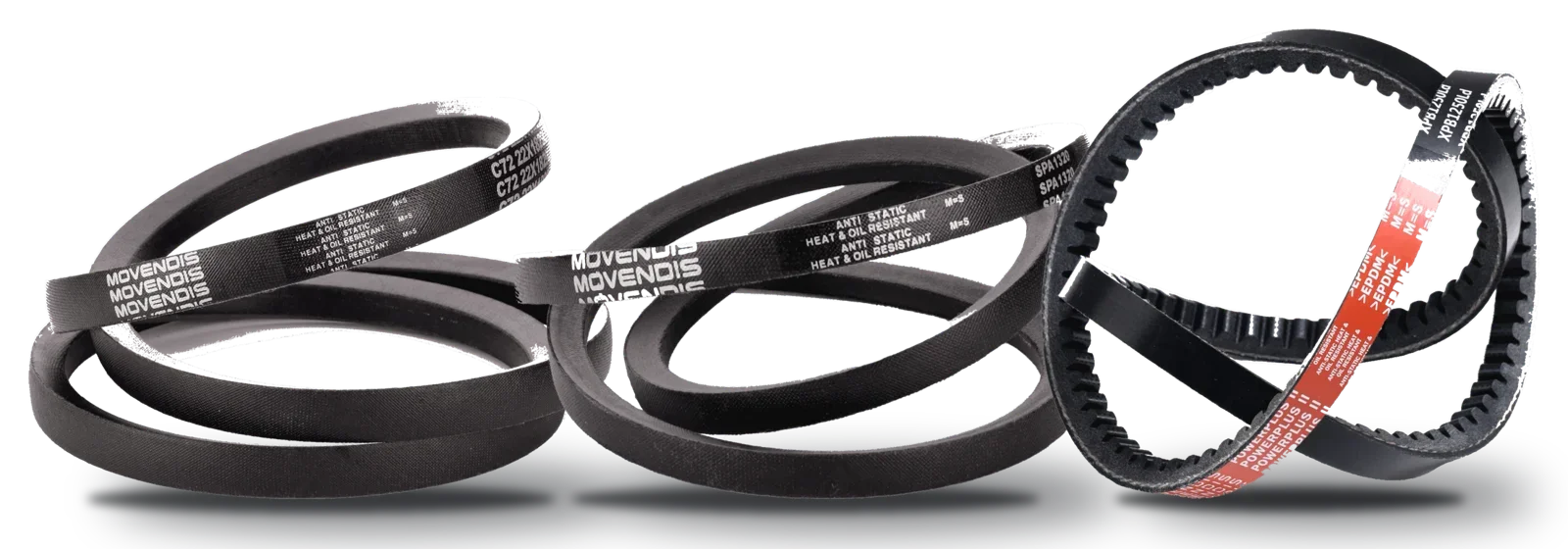

Four types of V-belt.

From the Movendis and CMW ranges.

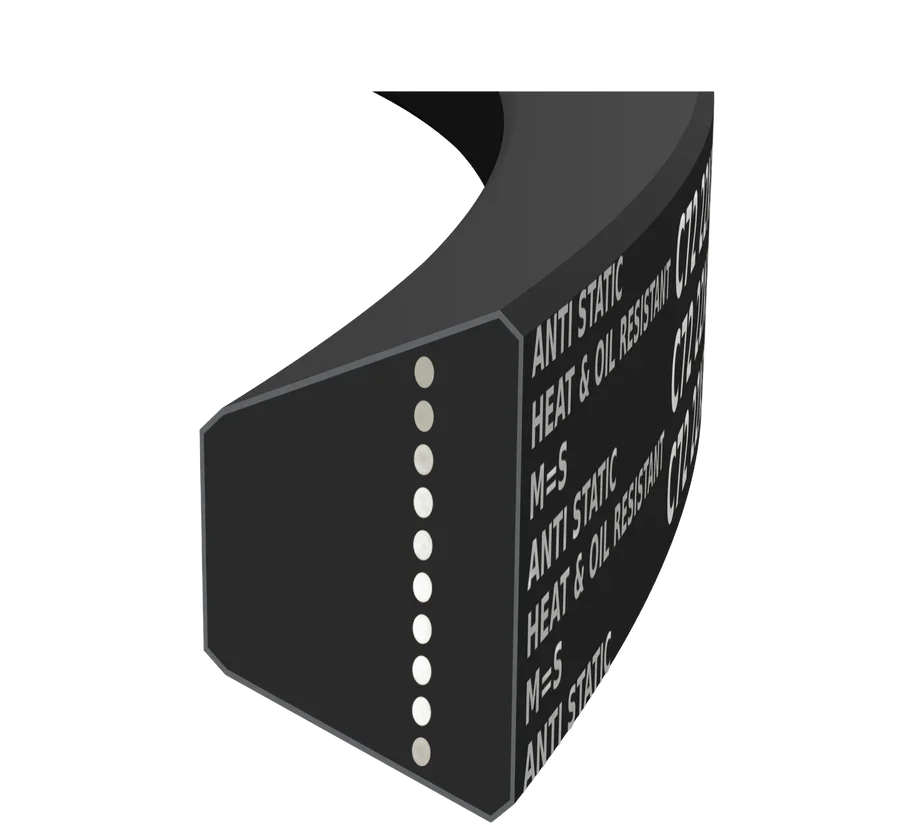

Classical wrapped V-belt C72, cut section: cover, rubber base and tensile cords

Hover to see insideTap to see inside

Classical A–D

Wrapped belt with a wide, shallow section. Runs up to 30 m/s. Used on agricultural and industrial machines, including textile.

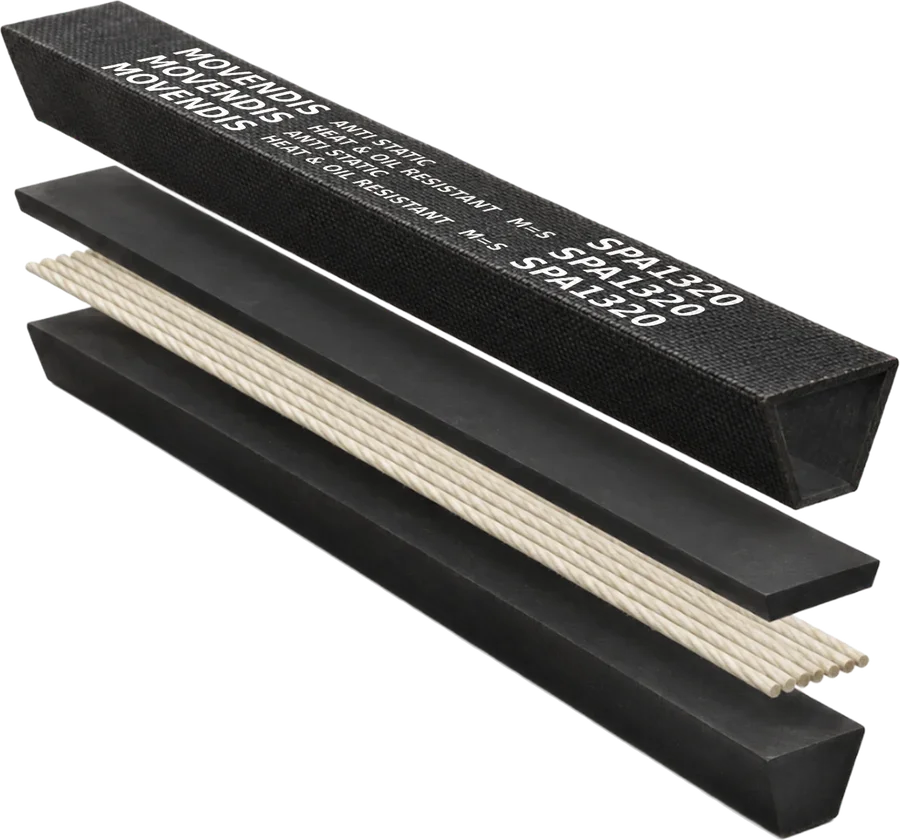

Narrow wedge V-belt SPA 1320, exploded view: cover, bonding layer, cords and rubber base

Hover to see insideTap to see inside

Narrow wedge SPZ–SPC · 8V

Wrapped belt with a deeper section for its width. Runs up to 40 m/s. Used in agriculture and textile.

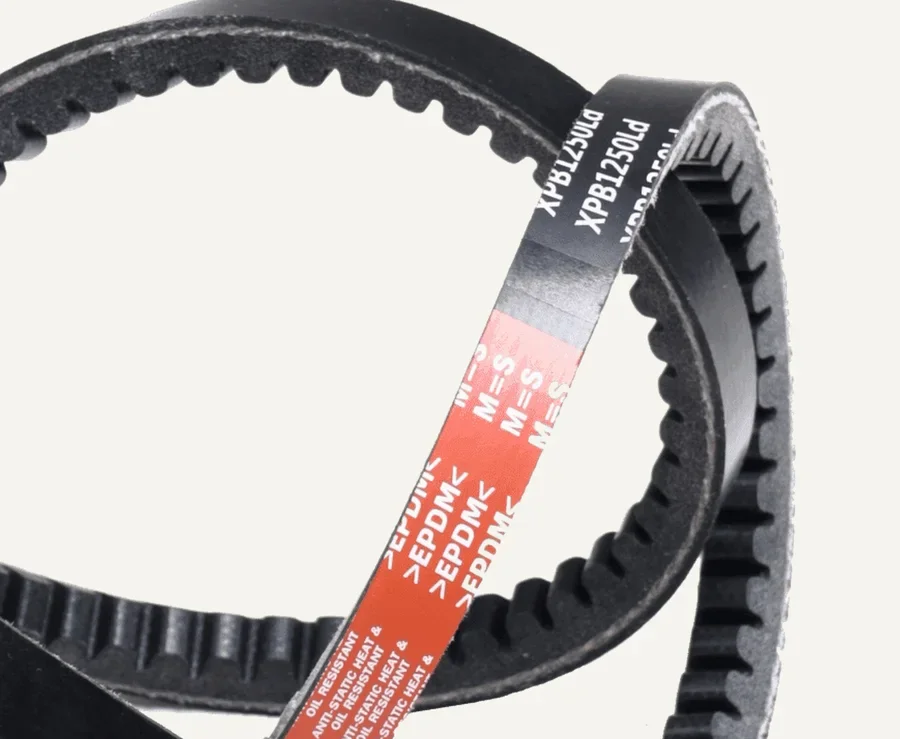

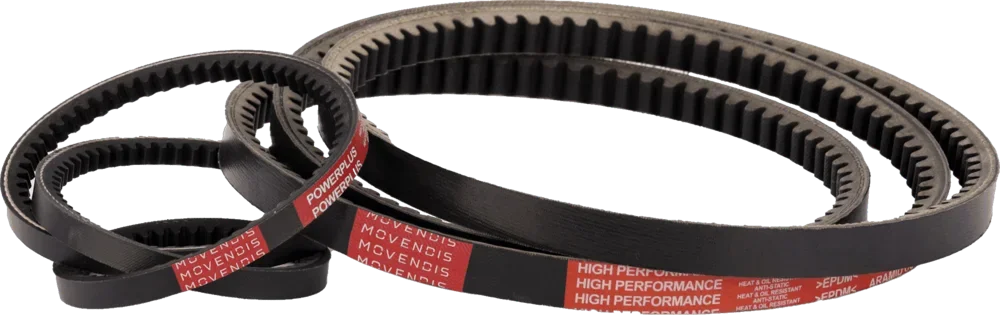

Movendis PowerPlus cogged raw-edge V-belts

Cogged raw-edge XPA–XPC

Moulded cogs and bare sides, so it bends round small pulleys and carries more power for its size. Runs up to 50 m/s. Used on machinery and in mining and quarrying, pulp and paper, textile, wood, brick and cement.

Banded B

Classical B-section belts joined by a tie band across the back, so the set runs as one belt. From CMW: 148 in long, with 4, 5 or 6 ribs.

Size guide

V-belt sizes we supply.

Tell us the section and the length. We quote the same working day.

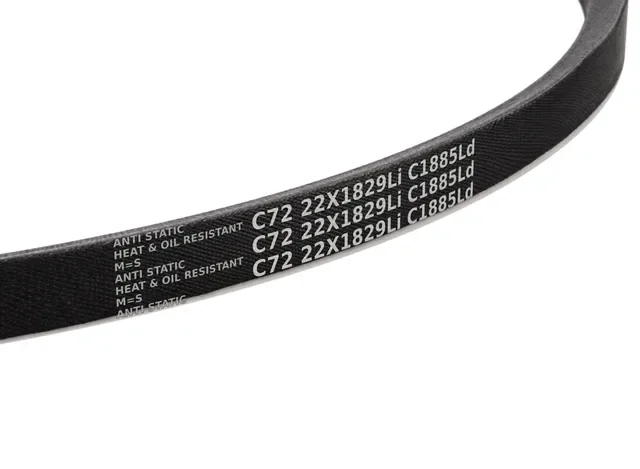

Classical wrapped V-belt C72, printed code

Section	Top width (mm)	Lengths we supply
A	13	27–197 in
B	17	30–303 in
C	22	47–394 in
D	32	98–441 in
E	38	441 in Other lengths to order

Ask for any length on WhatsAppLength ranges from GICO’s stock list. No stock status is shown.

Not sure which? Send a photo, or see how to identify it.

Replace V-belts as a matched set

Mixing old and new belts on one drive leaves one belt riding high and doing no work. Send the belt code and the number of grooves, and we quote the full set.

GoodOne matched set: every belt at the same height.

WornMixed old and new: one belt rides high and does no work.
